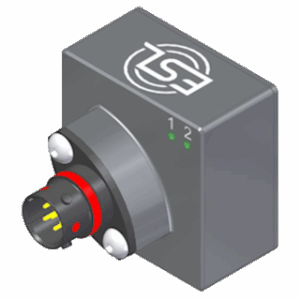

Bridge

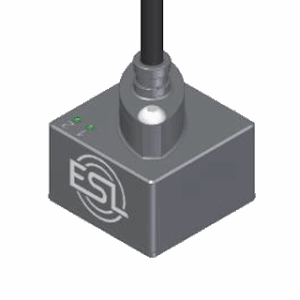

BrdigeCAN

CAN2.0 / FD to CAN2.0 / FD

This CAN Bridge Unit is designed to mirror CAN data from one channel to another, each channel has the option to be configured as CAN-FD or CAN2.0. The two CAN channels have galvanic isolation to fully ruggedise the unit under fault conditions. Diagnostic messages of the unit and CAN bus are also provided,



Unit supply voltage:8V to 16Vdc
Inputs:CAN 2.0B or CAN FD
Example Functions:
  • Split / Isolate CAN Bus
  • Filter specific CAN ID’s out
  • Translate between CAN2.0 and CAN FD
  • Translate between data rates
  • Change message CAN ID’s
  • CAN message rate reduction
Termination ResistorSelectable
Operating temperature (continuous):-10°C to 85°C
Vibration:20g Sinusoidal 50 to 2500Hz
Unit Size:28mm x 28mm x 15mm
 LED’s1 per bus indicating bus traffic

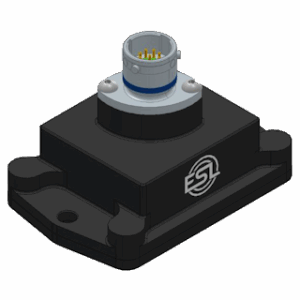

Brdige_1

ARCNET to Ethernet

This ARCNET to Ethernet Bridge Unit is designed to provide on vehicle communication gateway for low latency protocol conversion between ARCNET and Automotive Ethernet (100BASE-T1). The unit offers extensive configuration capabilities including configurable ARCNET Node ID, IP addressing for Ethernet communication. Detailed settings for UDP multicast streams encompassing source and destination IP addresses and ports. The unit is configured via CAN2.0 or CAN-FD (selectable) and there is an extensive suite of integrated diagnostics.



Unit supply voltage:8V to 18Vdc
Inputs:
  • ARCNET
  • Ethernet
  • CAN2.0 / FD
CAN termination ResistorSelectable
Operating temperature (continuous):-10°C to 85°C
Vibration:20g Sinusoidal 50 to 2500Hz
Unit Size:58mm x 38.4mm x 38mm
